Slope Covering
Covers soil or weathered rock slopes to limit loose stones and surface movement.
Chain Link Slope Protection Net for Surface Covering, Greening, and Light Rock Control
Chain link slope protection net provides an economical flexible cover for shallow slope stabilization and vegetation support. The diamond mesh follows uneven ground and helps hold loose surface material, soil, or planting substrate in place.
It is used on road slopes, embankments, cut slopes, and greening projects with lower energy requirements. Mesh aperture, wire diameter, roll width, selvage, and coating can be selected for site coverage and installation speed.
Product Advantages
- Slope covering: Designed around slope covering to match key engineering needs more directly.
- Adaptable to complex terrain: Can be configured according to slope shape, geological conditions, and protection level.
- Strong system compatibility: Can work with anchors, support ropes, and connectors to form a complete protection system.
- Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
- Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure
Chain Link Slope Protection Net is woven into a diamond mesh and used with anchors, support ropes, stitching ropes, and border ropes. Laid over the slope as a continuous covering layer, it restrains shallow debris, supports greening material, and reduces surface erosion.
Working Principle
Chain Link Slope Protection Net forms a continuous flexible covering over the slope. The diamond mesh limits shallow debris movement and supports sprayed soil, vegetation roots, or additional protection layers. With anchors and border ropes, it improves surface stability.
Specifications
| Mesh opening | 40×40mm, 50×50mm, 60×60mm, etc. |
| Wire diameter | 2.0-4.0mm, customizable |
| Roll width | 1m, 2m, 3m, etc. |
| Surface treatment | Galvanized, PVC coated, powder coated |
| Accessories | Anchors, wire ropes, lacing wire, connectors |
Applications
Green Slope Works

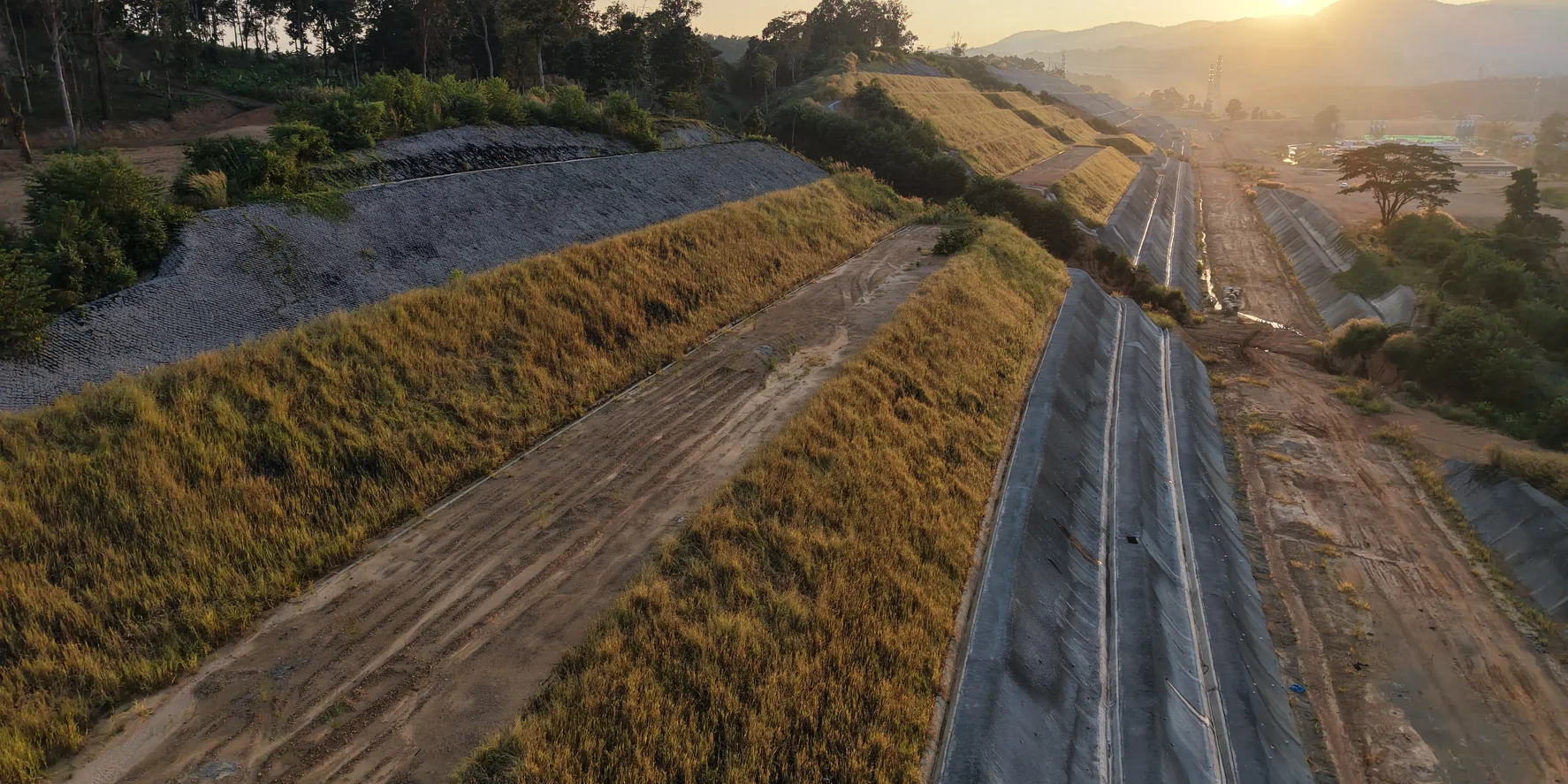

Works with hydroseeding, topsoil, and vegetation recovery for ecological protection.
Roadside Ditches

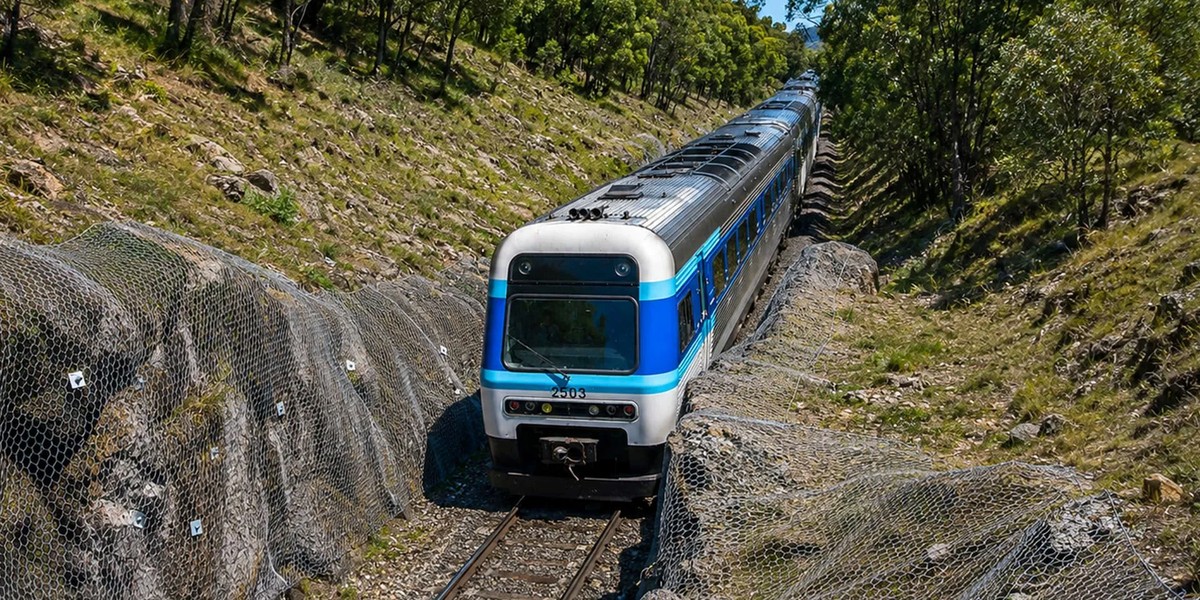

Light protection for highway, railway, and drainage ditch slopes.
Temporary Stabilization
Used on exposed construction slopes, spoil areas, and short-term protection works.
