Residential Windows
Clear-view insect screening for everyday home windows.

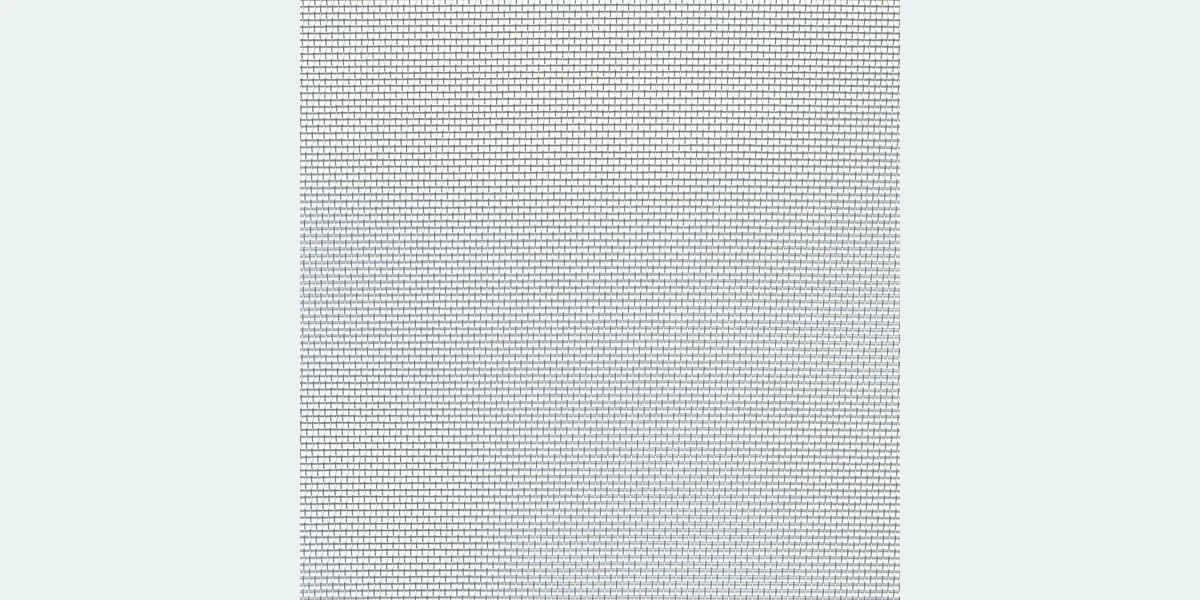

HD Square-Hole Aluminum Alloy Screen Mesh
HD square-hole aluminum alloy screen mesh is woven from lightweight 5154 aluminum-magnesium alloy wire. Its fine, regular openings support clear outward views, natural airflow, and everyday insect control for modern door and window systems.
The mesh is easy to handle, cut, and fit into fixed, sliding, casement, or replacement screen frames. Mesh count, wire diameter, roll width, length, color, and finish can be coordinated with fabrication requirements.
Product Advantages
- Clear outward view: Fine wire and regular square openings reduce obstruction.
- Lightweight handling: Aluminum-magnesium alloy is convenient to move, cut, and install.
- Balanced airflow: Consistent open area supports natural ventilation through the frame.
- Insect screening: Closely controlled openings provide practical everyday insect exclusion.
- Flexible finishing: Several finishes, roll widths, mesh counts, and colors are available.
Structure
Closely controlled aluminum-magnesium alloy wires are interwoven at right angles to form consistent square openings. The woven roll can then receive electrostatic spray, baked coating, pickled, or stainless-look finishing according to the required appearance and exposure conditions.
Working Principle
Fine wire and consistent square apertures reduce visual obstruction while allowing air to pass through the screen. The alloy wire keeps the mesh light and dimensionally stable, helping it sit flat after tensioning in a compatible frame.
Specifications
| Material | 5154 aluminum-magnesium alloy wire |
| Reference mesh | 18 × 16 mesh; other mesh counts available |
| Wire diameter | Selected by mesh count and frame requirements |
| Finish | Electrostatic spray, baked, pickled, or stainless-look finish |
| Supply form | Continuous rolls or cut lengths in custom widths |
Applications
Sliding Doors
Lightweight mesh for large sliding screen frames.
Balcony Screens
Ventilated screening for apartment and balcony openings.
Replacement Screens
Roll supply for cutting and renewing existing screen panels.
