Landscape Walls
Neat welded boxes suit gardens, parks, and commercial retaining features.

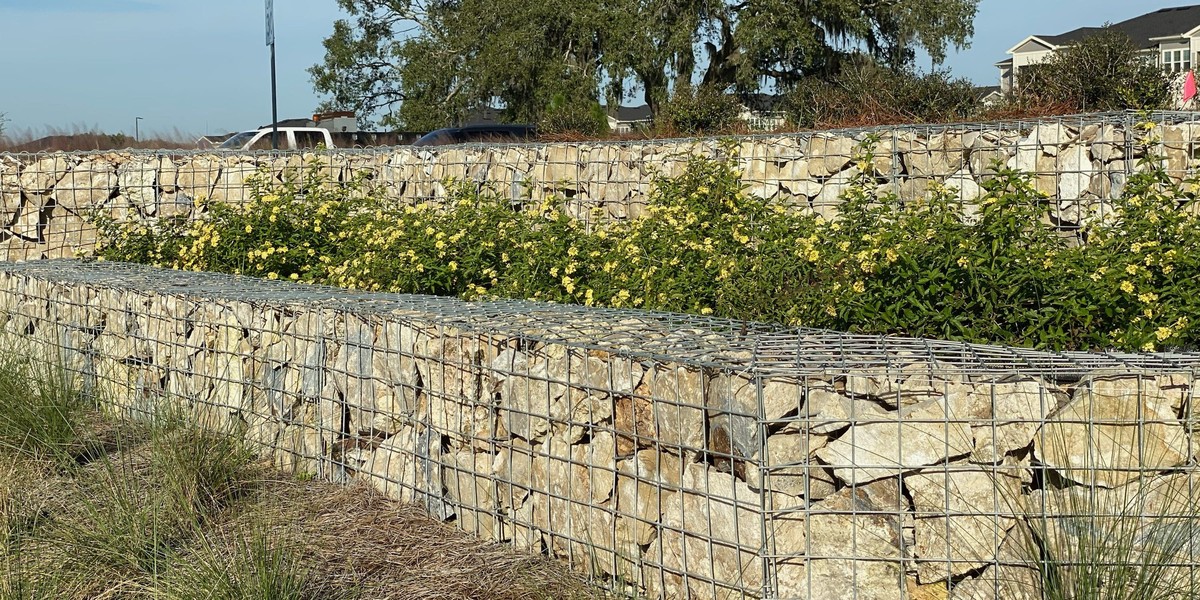

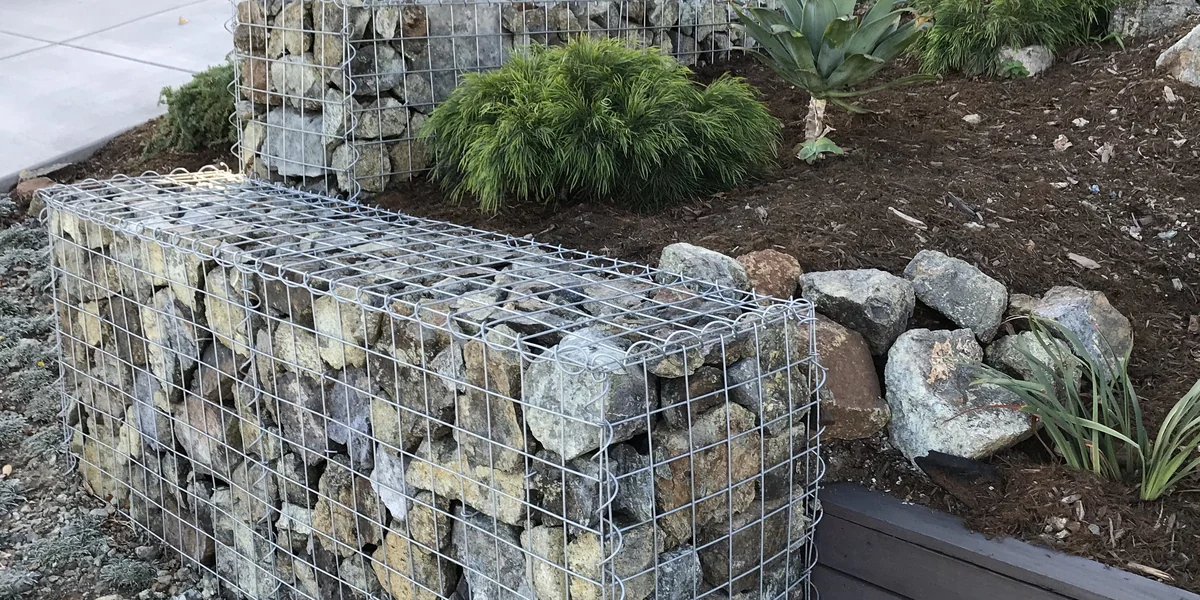

Welded Gabion Box for Clean-Line Landscape Walls, Cladding, and Site Features
Welded gabion boxes are assembled from rigid welded panels, giving the finished wall a straighter edge and more architectural appearance than woven baskets. They are useful where appearance, alignment, and repeatable module size matter.
They are often used for garden walls, facade cladding, seating, boundary features, and decorative retaining structures. Panel wire diameter, mesh size, spiral or clip connection, surface treatment, and box depth can be customized.
Product Advantages
- Neat appearance: Designed around neat appearance to match key engineering needs more directly.
- Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
- Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
- Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
- Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure
Welded Gabion Box is assembled from welded mesh panels, spiral binders, stiffeners, diaphragms, and lids. The flat panels and rigid welded joints create a neat, dimensionally stable box that can be filled with stone for landscape walls, retaining walls, or boundary decoration.
Working Principle
Welded Gabion Box uses the rigidity of welded panels to keep a stable box shape after stone filling. The flat panels create a neat face, internal stiffeners and diaphragms limit bulging, and stone voids maintain drainage, making it suitable for projects that require appearance and dimensional stability.
Specifications
| Common size | 1×0.5×0.5m, 1×1×1m, 2×1×1m, customizable |
| Mesh opening | 50×50mm, 75×75mm, 100×100mm, etc. |
| Wire diameter | 3.0-6.0mm |
| Surface treatment | Hot-dip galvanized, powder coated, zinc-aluminum coating |
| Accessories | Spiral binders, stiffeners, clips, connection rings |
Applications
Rigid Revetment
Used along rivers, lakes, and water features with clean stacking and shaping.
Architectural Screens
Works as facades, partitions, and landscape structures with visible stone texture.
Municipal Works
Protects road slopes, plazas, and public facility edges with stable geometry.
