Security Doors
Woven stainless infill for fabricated security door systems.
Stainless Steel Security Mesh

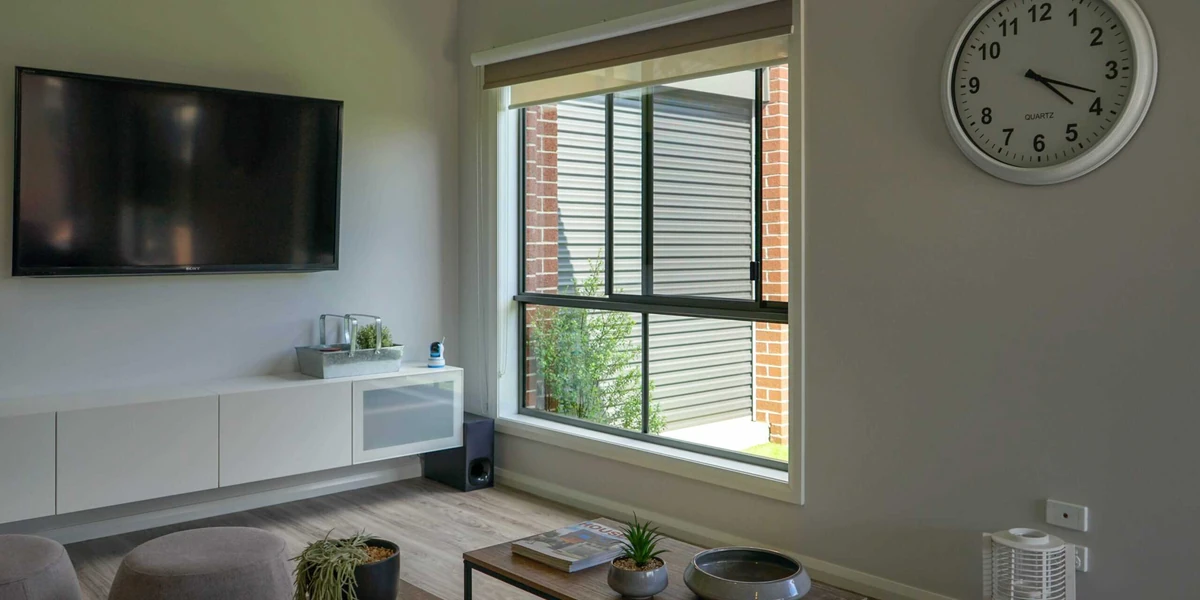

Stainless steel security mesh combines woven metal strength with practical ventilation, visibility, and insect exclusion. SUS 304 and SUS 316L options allow the mesh to be matched to general building, humid, or coastal exposure conditions.
It is used in security doors, windows, balcony protection, ventilation openings, and fabricated screen systems. Steel grade, mesh count, wire diameter, panel or roll size, coating color, and frame system can be specified before production.
Product Advantages
- Woven metal strength: Interlocked stainless wires distribute force across the screen.
- Material selection: SUS 304 and SUS 316L options suit different exposure conditions.
- Ventilation and visibility: Square openings retain practical airflow and outward sight lines.
- Corrosion resistance: Passivated stainless steel supports long-term building use.
- Fabrication flexibility: Panels, rolls, wire diameters, mesh counts, and finishes can be specified.
Structure
High-quality stainless steel wires are woven in perpendicular directions to form stable square openings. The mesh is pickled and passivated after weaving, with optional powder coating available for a darker appearance and additional surface protection.
Working Principle
The interlocked wires share impact and tension across the woven surface while the open area preserves airflow and outward visibility. Selecting the appropriate steel grade and wire diameter balances security, corrosion resistance, and ease of fabrication.
Specifications
| Material | SUS 304 or SUS 316L stainless steel wire |
| Reference mesh | 11, 12, 15, or 18 mesh |
| Wire diameter | Customized for the selected security and opening requirements |
| Surface treatment | Pickled and passivated; optional powder coating |
| Supply form | Panels or rolls with custom dimensions and edge protection |
Applications
Security Windows
Strong ventilated mesh for fixed and operable windows.
Balcony Protection
Durable screening for balcony and elevated openings.
Ventilation Openings
Corrosion-resistant protection where regular airflow is required.
